FRANKENRANGER SPECIFICATIONS

Not lowered, no aftermarket wheels, stock paint--the ultimate sleeper?


CHASSIS/BODY:

  • 1997 Ranger Splash extended cab (originally 4.0L/5-Speed)
  • Toreador Red exterior/Prairie Tan interior
  • A/C, PS, PB, 4-wheel ABS, Premium Sound, sliding rear window, Ford bedliner

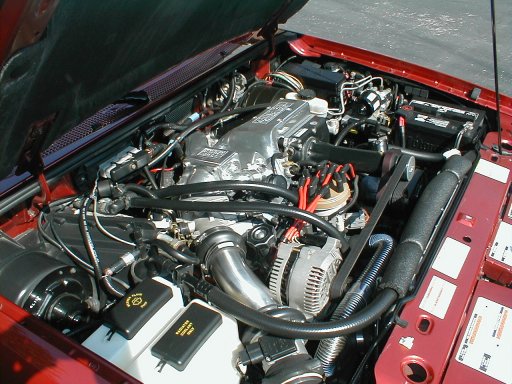

ENGINE:

  • 1995 Mustang Cobra 5.0L
  • Ported GT-40 lower intake manifold
  • Kenne-Bell 8 PSI supercharger
  • 30-lb./hr. fuel injectors
  • Marine-issue fuel rails/custom fuel lines from tank
  • 190 LPH in-tank fuel pump
  • Kenne-Bell Boost-A-Pump  system
  • 80mm Lincoln Mark VIII mass-air meter
  • Dual chip prepared by Inject-Tech
  • Ford Motorsport 65mm throttle body & elbow
  • Custom modified throttle cable (combination of '95 Mustang 5.0L & '00 Expedition 4.6L cables)
  • L&L Products stainless steel headers
  • Custom HPE-fabricated engine mounts
  • OEM Ranger heavy-duty aluminum radiator
  • Coolflex upper and lower radiator hoses
  • Custom wiring by HPE
  • Dual 12" Spal  cooling fans
  • Setrab  oil cooler
  • Relocated oil filter
  • Custom A/C hoses

EXHAUST SYSTEM:

TRANSMISSION/DRIVETRAIN:

  • Tremec 3550 5-speed manual transmission
  • Tremec Mid-Shift kit to relocate shifter
  • Custom 4340 chromoly tube shifter with Cobra leather shift knob
  • Stock factory console and shifter boot
  • Tremec aluminum bellhousing
  • Ford Motorsport HD clutch assembly
  • McLeod  hydraulic throwout bearing
  • Stock Ranger clutch master cylinder and pedal assembly
  • Custom 2-piece steel driveshaft (made from two Mustang GT driveshafts)
  • Ford F350 Super Duty center carrier bearing
  • Ford 8.8" rear differential with 3.55 gears and Trac-Lok differential

MISCELLANEOUS:

COMING SOON:

  • 2000 SVT Cobra 17x8 aluminum wheels
  • 255/50/17 BFGoodrich Comp TA ZR4 tires
  • Tek Style tonneau cover
  • Factory fog lights and front valence
